Extended Stem Ball Valve (FB) Flanged End Connection

All Stem Extension are available in Three Piece / Two Piece Design Flange End (FB) Ball Valve with ISO Mounting Pad for standard sizes of extension as 100/150/200mm and for custom size too.

All dimensions of extended stem valves are as per Three Piece / Two Piece Design Flange End (FB) Ball Valve with ISO Mounting Pad.

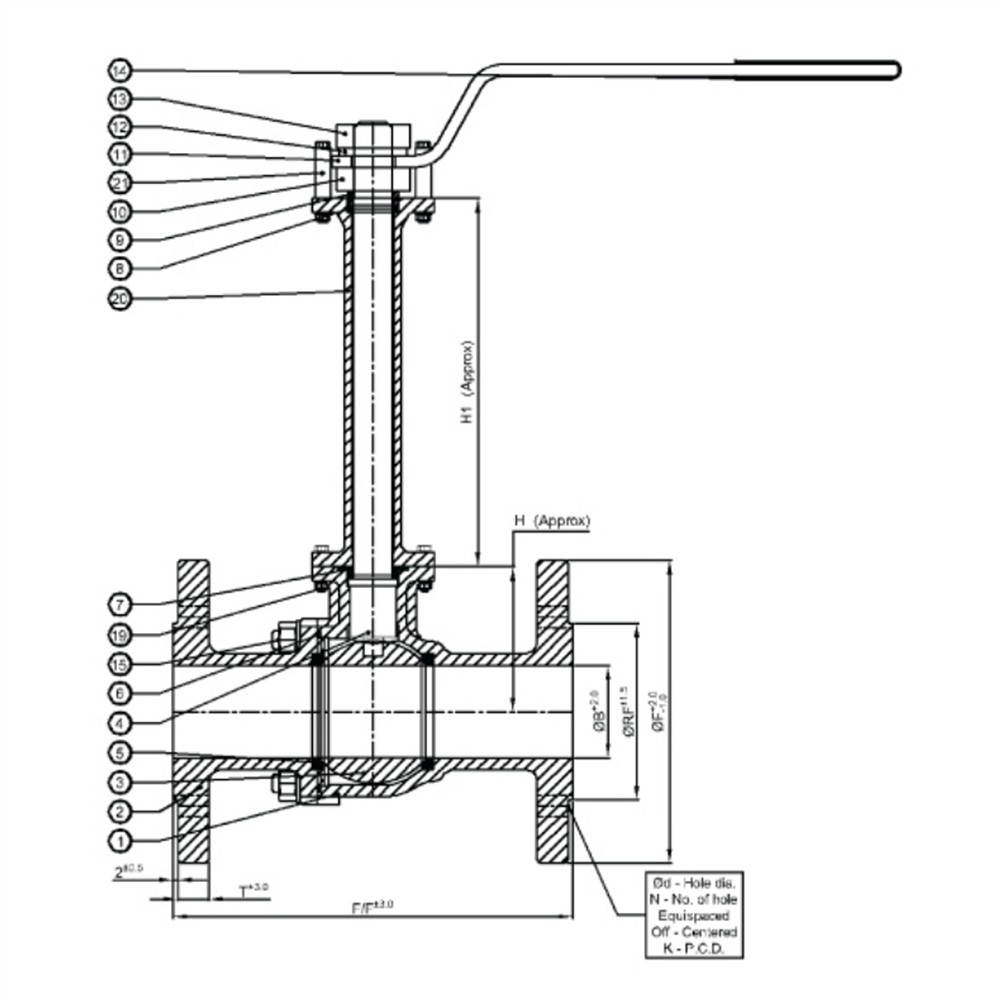

BILL OF MATERIAL
No. Part Name Material of Construction Qty.
1 Body WCB / CF8 / CF8M 1
2 Sidepiece / Cap WCB / CF8 / CF8M As Required
3 Ball WCB / CF8 / CF8M 1
4 Stem SS 304 / SS 316 1
5 Seat Ring VIRGIN PTFE 2
6 Gasket VIRGIN PTFE As Required
7 Stem Seal / Stem Bush VIRGIN PTFE 1
8 Gland Packing VIRGIN PTFE 2
9 Gland SS 304 / SS 316 1
10 Gland Nut SS 304 / SS 316 1
11 Lever COATED MS / SS 1
12 Spring Washer COATED MS / SS 304 1
13 Lever Nut COATED MS / SS 304 1
14 Lever Sleeve PVC 1
15 Body Sidepiece Fasteners COATED MS / SS 304 / SS 316 As Required
16 Lock Washer COATED MS / SS 1
17 Coupler SS 410 / SS 304 / SS 316 1
18 Mounting Bracket COATED MS / SS 304 / SS 316 1
19 Mounting Pad Fasteners COATED MS / SS 304 / SS 316 As Required
20 Extension Pipe COATED MS / SS 304 / SS 316 1
21 Lever Stopper COATED MS / SS 2

Notes :- 1) Hollow Ball Will be Provided for Sizes 40mm and Above
