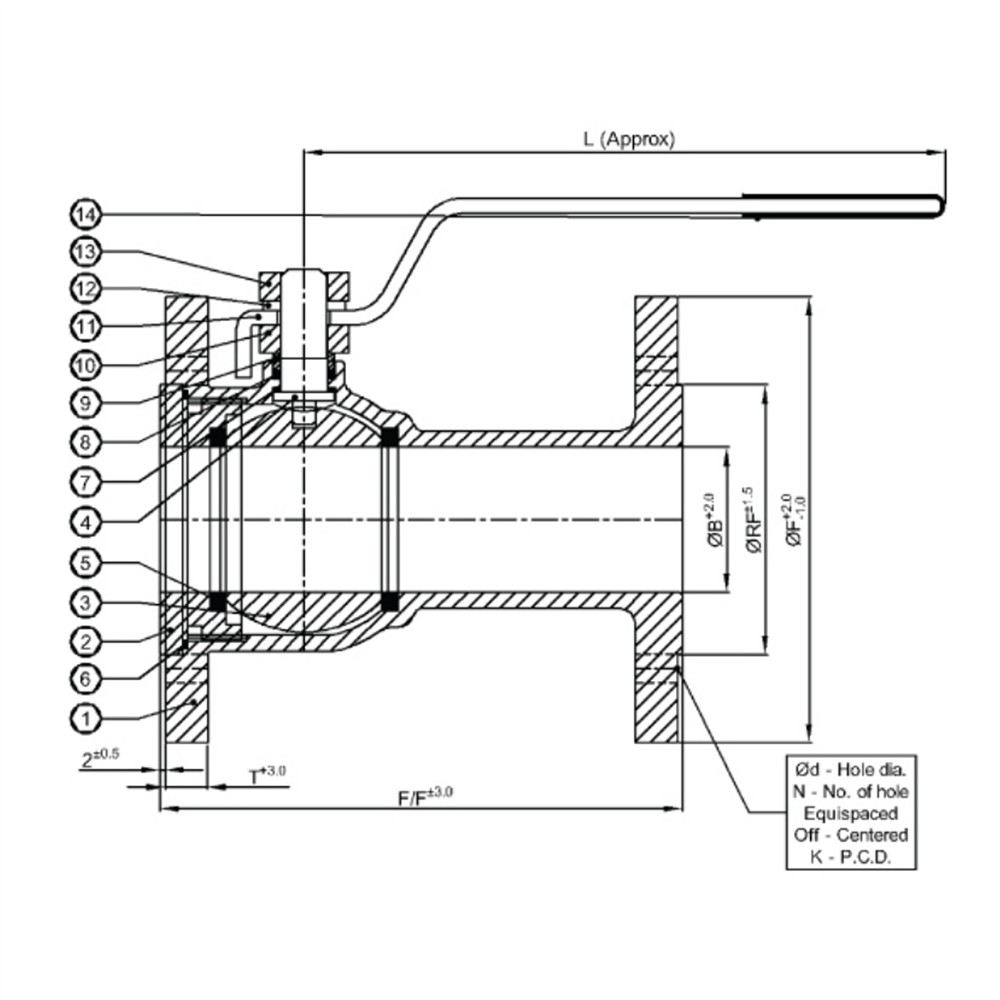

| Size |
ØB |
F/F |
ØF |
T |
ØRF |
Ød
(inch) |
N |
K(PCD) |
H |
L |
| DN (mm) |
NPS (inch) |
| 25 |
1 |
25 |
127 |
108 |
9.7 |
50.8 |
5/8" |
4 |
79.2 |
70 |
170 |
| 40 |
1½ |
38 |
165 |
127 |
12.7 |
73 |
5/8" |
4 |
98.6 |
105 |
225 |
| 50 |
2 |
49 |
178 |
152 |
14.2 |
91.9 |
3/4" |
4 |
120.6 |
115 |
225 |
| 65 |
2½ |
62 |
191 |
178 |
15.7 |
104.6 |
3/4" |
4 |
139.7 |
135 |
310 |
| 80 |
3 |
74 |
203 |
190 |
17.5 |
127 |
3/4" |
4 |
152.4 |
150 |
310 |
| 100 |
4 |
100 |
229 |
229 |
22.4 |
157.2 |
3/4" |
8 |
190.5 |
160 |
360 |
* All dimensions are in mm.
Optional Fire Safe Design Available From Size 25mm To 200mm.
