Three Piece Design Ball Valve (FB) Screwed End / Socket End Connection with ISO Mounting Pad

Specification
Design Standard ISO 17292 / IS 9890-1981
Face to Face Standard Manufacturer's Standard
Thread End Standard ISO 228-1
Wall Thickness Standard ISO 17292
Testing Standard ISO 17292
TEST PRESSURE (Kg/cm²)
Pneumatic Seat Test 7
Hydraulic Seat Test 22
Hydraulic Shell Test 32

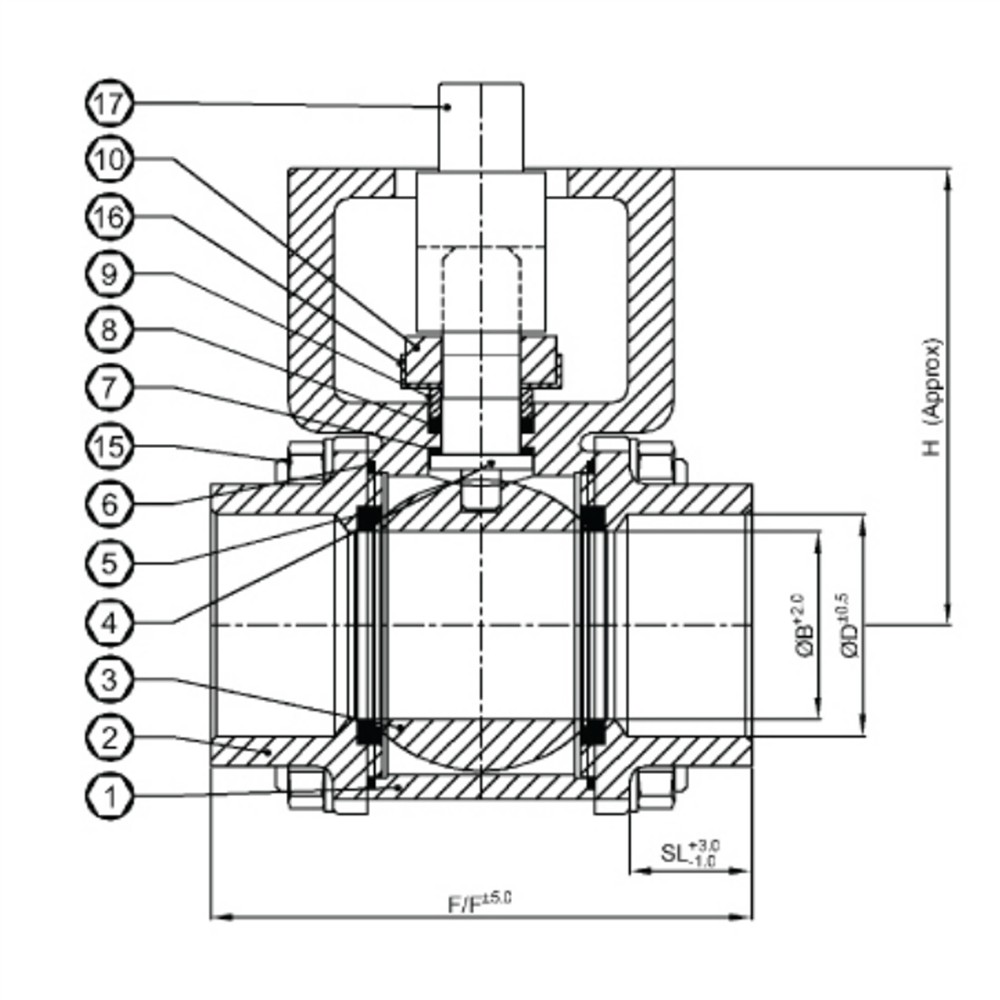

DN (mm) NPS (inch) ØB F/F ØD SL H H* L H1 ISO FLANGE
15 1/2 13 58 21.8 10 65 26.2 115 37.5 F03
20 3/4 19 67 27.2 13 70 29 115 37.5 F03
25 1 25 84 33.9 13 85 45 135 37.5 F03
32 1 1/4 32 81 42.7 13 105 50 165 37.5 F05
40 1 1/2 38 88.5 48.8 13 110 60 190 48 F05
50 2 49 109 61.2 16 120 69.5 190 48 F05
65 2 1/2 62 124.5 73.9 16 135 81.75 310 48 F07
80 3 74 142 89.8 16 150 97 310 48 F07
